How do I install the headboard bracket kit?

Headboard Brackets are an optional accessory and are not included. A hex key is included with the accessory kit to complete the installation.

Step 1

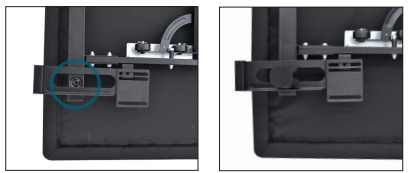

• Align the hole in the bracket with the brass sleeve into which the leg threads. Hold the bracket in place and screw the leg into the base until it is snugly in place. Do not overtighten. Too much force may cause the leg to spin freely.

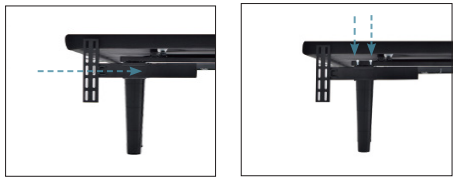

• Align the tab with the hole in the frame and use a short bolt, washer, and wingnut to secure the bracket. Make sure the bolt is tight.



Step 2

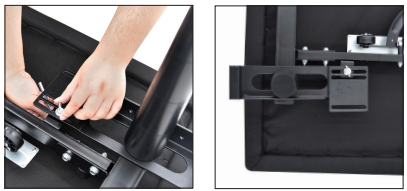

• Measure the distance between the mounting holes on the headboard and install the T-Bracker to accommodate the headboard.
• To install the T-Bracker, slide the T-Bracker through the end of the headboard bracket. Align the flat side of the T-Bracket plate to the mounting holes on the headboard.
• Secure the T-Bracket in place by inserting two short screws through the top of the bracket. Use the hex key to tighten screws.

Step 3

• Connect your headboard to the attachment plate using the remaining long screws or hardware that came with your headboard. Use the hex key to tighten bolts.
